Automate sampling and FT-IR analysis of gases and vapors evolved from a permeation test chamber for up to three permeation cells.
The instrument is specifically designed to automate sampling and trigger analysis of gases and vapours evolved from a permeation testing chamber which accommodates up to three cells, introducing a 2 meters Long Path Cell (LPC) for your FT-IR spectrometer. The system is provided with an optimized Peltier-effect chamber for permeation cells. The box maintains a stable temperature at 23 °C during the entire analysis time, providing switching between cells test and acquire spectra with the long path cell installed the FT-IR.
Reference Standards
ASTM F739 - Standard Test Method for Permeation of Liquids and Gases Through Protective Clothing Materials Under Conditions of Continuous Contact. EN 374- 3 - Protective gloves against chemicals and micro-organisms. Part 3: Determination of resistance to permeation by chemicals. EN 16523-1 - Determination of material resistance to permeation by chemicals. Part 1: Permeation by potentially hazardous chemicals under conditions of continuous contact. EN 16523-2 - Determination of material resistance to permeation by chemicals. Part 2: Permeation by potentially hazardous gaseous chemicals under conditions of continuous contact. ISO 6529 - Protective clothing. Protection against chemicals. Determination of resistance of protective clothing materials to permeation by liquids and gases.
Specifications
LPC temp.:
range 20 °C- 100 °C
Min temperature step:
1 °C
LPC volume:
100 ml
Peltier chamber temp.:
23 °C
Cycle time:
can be free time settable, for ex. 8 hours
Data collection:
captured in an Excel spreadsheet and embedded macro calculation
Experiment data:
can be automatically captured and saved for future elaboration
How it works

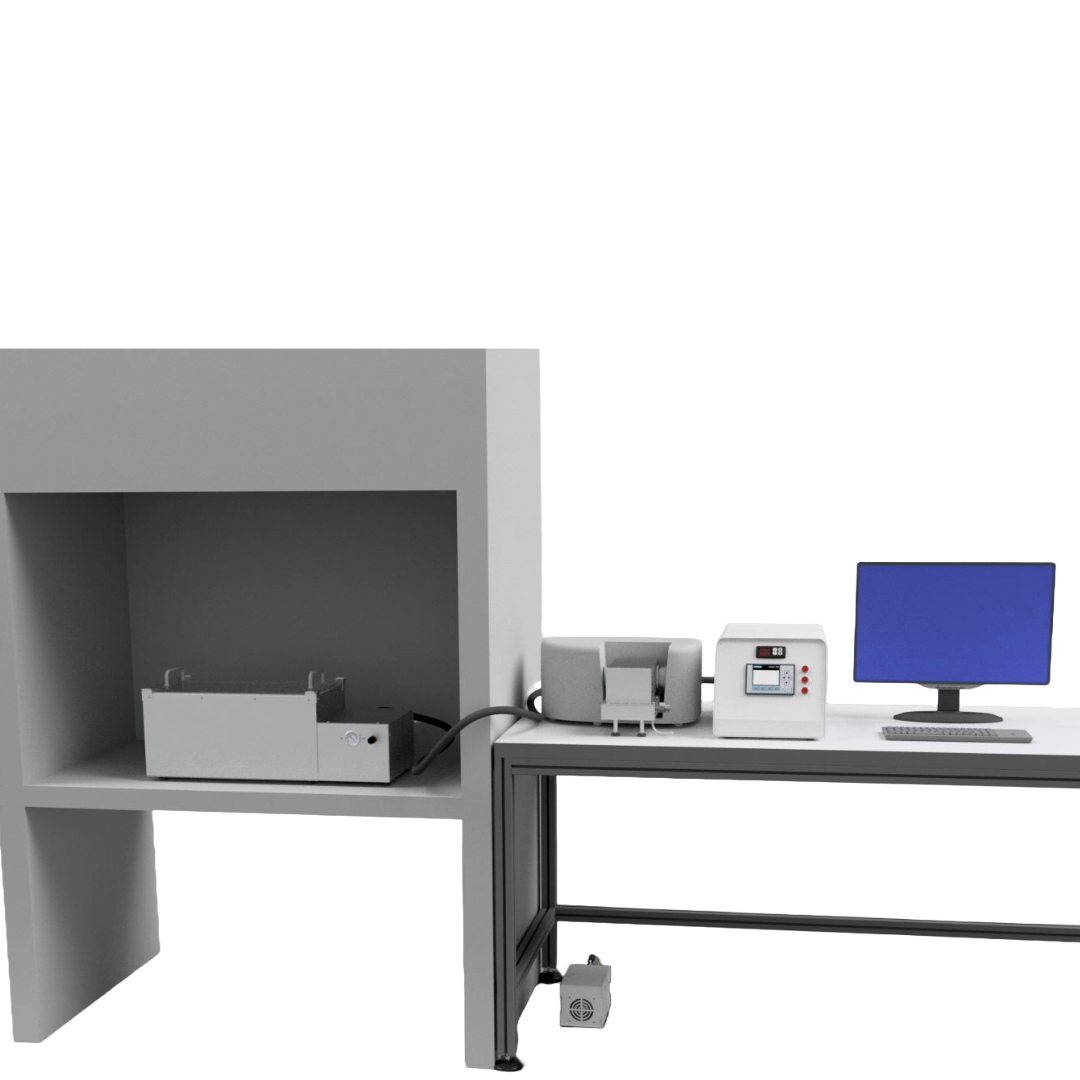

The system is equipped with: - Peltier-effect thermal conditioning chamber, for up to three permeation cells, with a stable temperature during the entire analysis. - 2 meters Long Path Cell, heatable up to 100 °C. - Main controller box with touchscreen display to setup and monitor the sampling cycle. The system can be entirely configured for your analysis and acquisition standards. By using the touchscreen display on the main controller: monitor flow and temperatures of the chamber and the LPC, direct the carrier gas to the defined permeation cell and start sampling with the long path cell for FT-IR spectra acquisition. Set up washing of the path and standby position, when the flow of the chamber remains active and it is redirected to the exhaust port. REDshift system can trigger background and spectra when needed.
